Volvo FE specifications

Everything you need to know about the Volvo FE, in glorious detail.

Powertrain

Find specifications about engines, transmissions, rear axles (including ratios), powertrain combinations and power take-offs.

Medium Duty Electric – power/torque



G9 – power/torque

Net output according to: EC 582/2011

D8 – power/torque

Net output according to: EC 582/2011

Electric​

Volvo FE

Performance

Up to 225 kW (300 hp) continuous power

Range​

Up to 275 km

Charging time (full charge​)

8 h with AC (43 kW) 2.3 h with DC (150kW)

Battery capacity

280–375 kWh, 3–4 batteries


Gas-poweredG9

Emission standard

Euro 6



No. of cylinders​

6



Displacement

8.9 dm3



Stroke

144.5 mm



Bore

114 mm



Compression ratio

12:01



Economy revs

1200–1700 r/min



Oil filters

2



Oil change volume, incl. filter

27.6 l



Cooling system, total volume

12.4 l



 G9 320 hp (239 kW)






Max power at 2000–2100 r/min

320 hp




Max torque at 1300–1400 r/min

1356 Nm



Diesel

D8



Emission standard

Euro 6



No. of cylinders​

6



Displacement

7.7 dm3



Stroke

135 mm



Bore

110 mm



Compression ratio

17.5:1

Economy revs

1000–1700 r/min



Exhaust braking effect

120 kW (2800 r/min)



Compression brake effect*

170 kW (2800 r/min)



Oil filters

1



Oil change volume, incl. filter

25.5 l



Cooling system, total volume

17 l





* option


 D8 250 hp (184 kW)






Max power at 2100 r/min

250 hp




Max torque at 900–1700 r/min

950 Nm


 D8 280 hp (206 kW)






Max power at 2100 r/min

280 hp




Max torque at 950–1700 r/min

1050 Nm


 D8 320 hp (235 kW)*






Max power at 2100 r/min

320 hp




Max torque at 1050–1600 r/min

1200 Nm




D8 350 hp (258 kW)




Max power at 2200 r/min

350 hp




Max torque at 1200–1600 r/min

1400 Nm






*available with B100, biodiesel



Oil change interval
Up to 120,000 km, or once every two years with VDS5.


Fuel prerequisites
EN 590 (EU norm) max 10 ppm sulphur.

Engine-mounted power take-off
Ratio 1:1, 600 Nm torque output both when driving and standing still.

Engine-Mounted Power Take-Off



Torque output

Ratio

PTER-DIN

600 Nm*

1:1



PTER-1400

600 Nm*

1:1



PTER-100

600 Nm*

1:1




* torque output both when driving and standing still. With AT2412 max. torque while driving = 150 Nm.

I-Shift

12-speed splitter and range gearbox with automated gearchanging system. I-Shift can be fitted with a compact retarder, power take-off and oil cooler.

Type

Top gear

Max torque (Nm)

GCW approval (tonnes)

AT2412

Direct

2400

44



Manual gearboxes
The manual gearboxes are operated with servo assistance. The short gear lever, which is integrated into the instrument panel, is vibration-free and gear lever movement is short and crisp. The gearboxes can be specified with a power take-off.

Type

Top gear

 Max torque (Nm)

GCW approval (tonnes)

ZTO1006

6

1050

32

ZTO1109

9120044


Automatic Gearboxes
The automatic transmission presents excellent starting properties and smooth gear changes that cover the entire speed range. The gearbox is operated via push buttons in the instrument panel. It can be specified with power take-off.

Type

Top gear

Max torque (Nm)

GCW approval (tonnes)

AL306

6

1300

32



Rear axles

Type

Axle

Gear

Max torque (Nm)

Max axle/bogie load (t)

GCW approval (t)

Single reduction

RSS1344E

Solo

Hypoid

2800

12

44

RSS1344C

Solo

Hypoid

2600

13

44

RTS2370A

Tandem

Hypoid35502370


Hub reduction

RSH1370F

Solo

Spiral bevel

3550

13

70

RTH2180D

Tandem

Hypoid

1200

21

80



Rear axle ratios

RSS1344C

RTS2370A

RSH1370F

RTH2180D

RSS1344E

3.70:1

3.09:1

3.46:1

2.63:1

2.47:1

4.11:13.40:13.61:12.94:12.64:1
4.63:13.78:13.76:1 3.13:12.85:1
5.29:14.13:14.12:1 3.33:13.08:1
6.17:14.50:14.55:13.57:13.36:1
 5.14:14.67:13.85:1
 5.67:15.41:14.17:1
 6.17:16.18:1
                      7.21:1

Powertrain combinations



D8 250 hp

D8 280 hp

D8 320 hp

D8 350 hp

G9 320 hp

Gearboxes



AT2412

●●●●

ZTO1006

●●

ZTO1109

●●●

AL306

●●●●●


Single reduction axles



RSS1344C

●●●●●

RSS1344E

●●●●

RTS2370A

 ●●●


Hub reduction axles



RSH1370F

●●●●●

RTH2180D

  ●●


There is a wide range of clutch-independent and clutch- dependent power take-offs to drive all sorts of body equipment.



Engine-mounted



PTER-DIN: Rear-mounted engine power take-off for direct drive of a hydraulic pump.

PTER1400: Rear-mounted engine power take-off with flange connection for hydraulic pump.

PTER100: Rear-mounted engine power take-off with flange connection for hydraulic pump.

Gearbox-mounted



PTR-HF/FH/ZF: Connecting flange attachment and low-rev or high-rev.

PTR-HP/PH/ZF: Connecting pump attachment and low-rev or high-rev.

PTRD-D1D: Dual drive with pump connecting attachment and flange connecting attachment.

Cab

Find specifications about cab measurements, cab heights above the ground and cab features

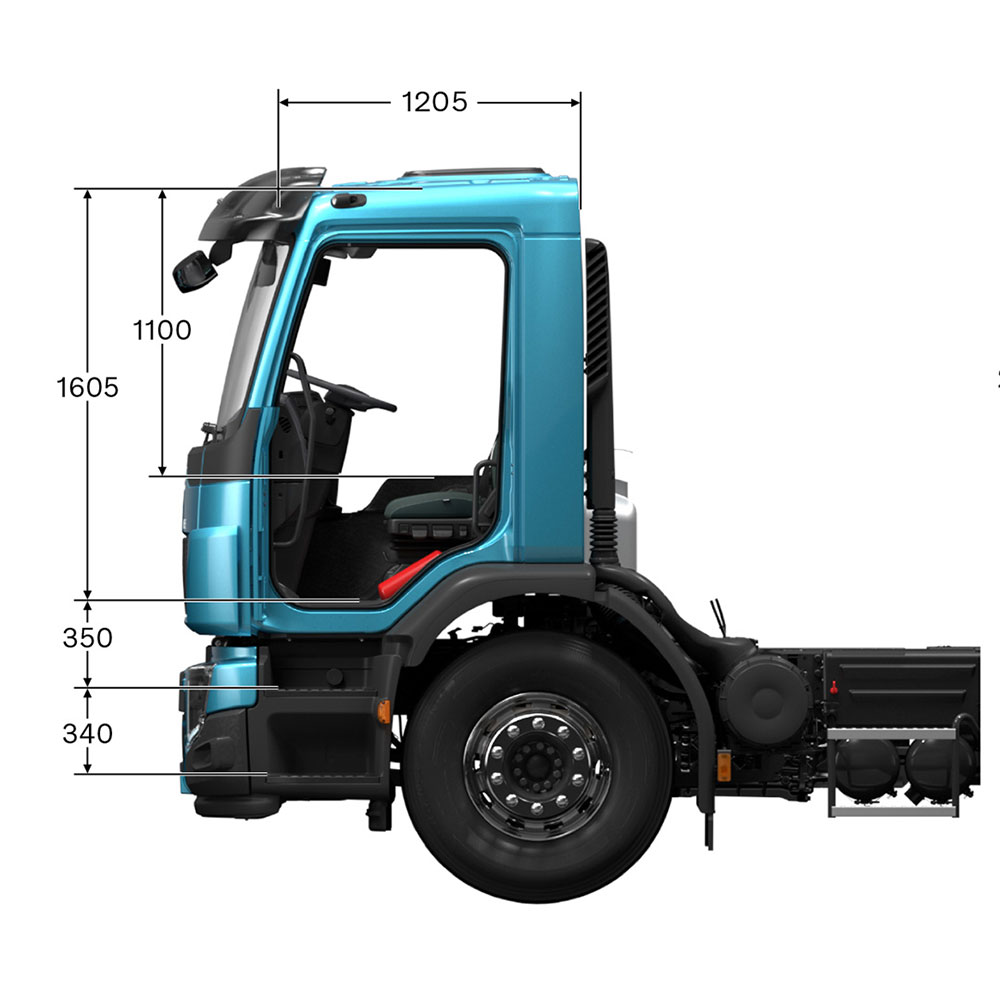

FE day cab

Day cab

Day cab with comfortable and ergonomic driver area. Interior height 1605 millimetres, length 1600 millimetres, width 2300 millimetres

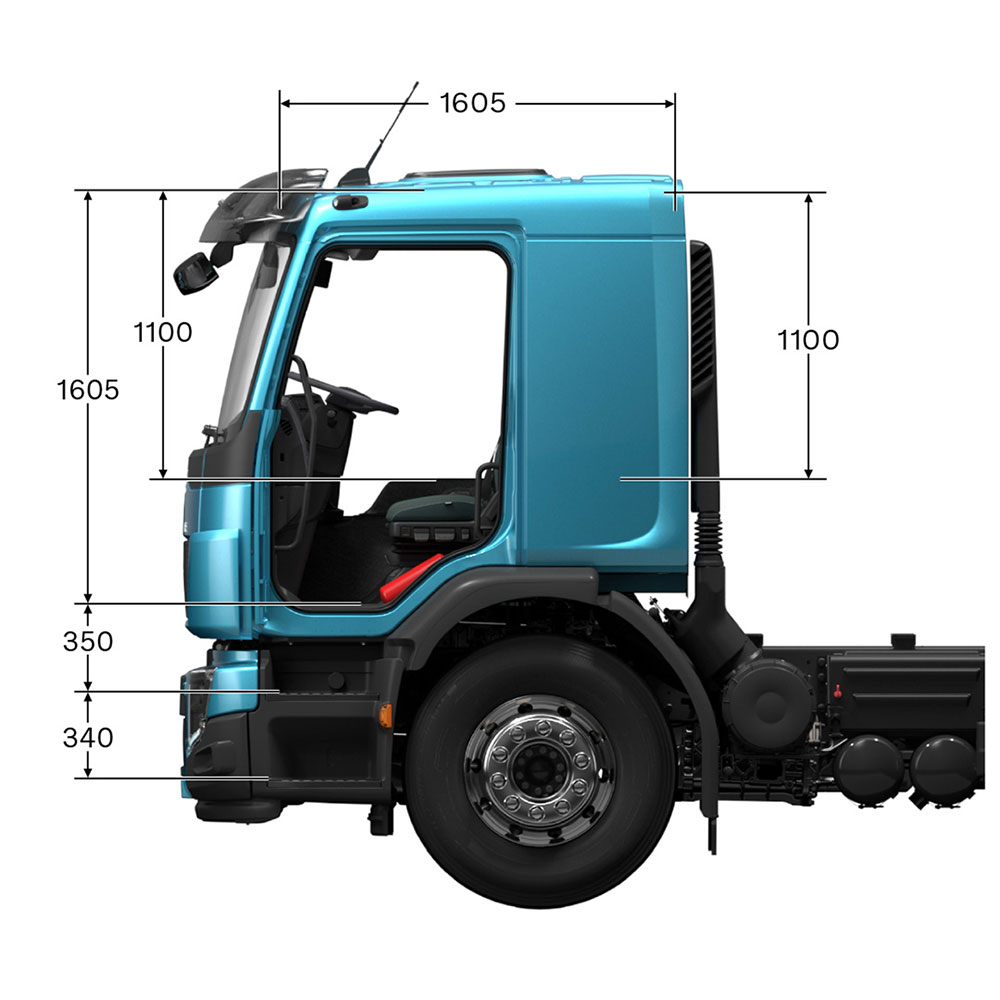

volvo FE Short sleeper cab

Short sleeper cab

Short sleeper cab offers extra space that can be equipped with a bed for one person or be used as office space with extra storage compartments. Interior height 1605 millimetres, length 2000 millimetres, width 2300 millimetres.

Volvo FE Sleeper cab

Sleeper cab

Sleeper cab with a bed for one person. Interior height 1605 millimetres, length 2200 millimetres, width 2300 millimetres.

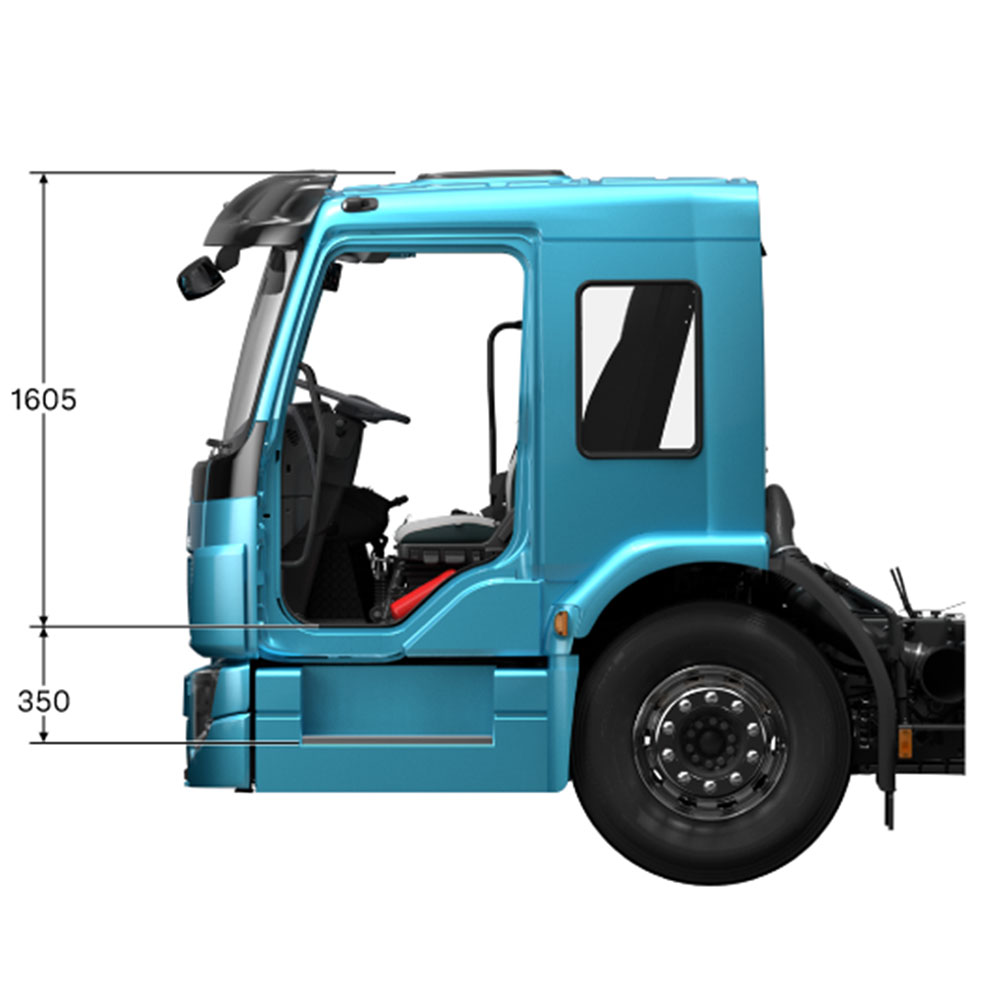

Volvo Low Entry Cab

Low Entry Cab

Low entry cab with low instep and room for one or up to three belted passengers. Interior height 1605 millimetres, length 2200 millimetres, width 2300 millimetres. Offered with foldable passenger door.

Cab suspension

Mechanical suspension for both front and back: coil spring and shock absorber. Pneumatic suspension for both front and back: air bellows.


Driver’s seat

Three different levels of comfort: Comfort, Standard and Economy. All three feature backrest, length, height and front tilt adjustment and integrated headrests.


Passenger seat

Three different levels of comfort are available: Standard, Economy or Basic.


Cab Colours

Available in 300 fixed variants. On top of that additional colours can be ordered on customer adaptation.


Steering wheel

The steering wheel has a diameter of 460 millimetres or 500 millimetres depending on truck configuration and can be pneumatically adjusted to the desired position.


Climate system

The cab heating system is available in two variants: manually controlled, heater only, or manually controlled heater and air condition. There is also a 2 kW parking heater system available that can be specified as an option.


Roof hatch

The cab can be equipped with a roof hatch that can be opened 50 millimetres. It is available in either glass or steel. The hatch can be operated either manually or electronically.


Seat upholstery

Comfort textile.


Wall upholstery

Comfort textile.

Cab heating

The cab heating system is available in two variants: manually controlled, heater only, or manually controlled heater and air condition. There is also a 2 kW parking heater system available that can be specified as an option.


Interior storage

The cab interior has many practical, easily accessible compartments for storage of documents and personal belongings. There are two storage units above the window, as well as four DIN compartments. A number of different storage and tunnel boxes, writing pad and clothes hooks can be specified as options.


Horns

There is a choice of two extra horn types, electric or pneumatic – either two roof-mounted horns, pneumatically operated, or one electrical horn under the front lid.


Bed

The bed is offered in one or two pieces and is either 580 millimetres or 780 millimetres wide. There is an optional bed protection bar.


Low Entry Cab

The FE Low Entry Cab provides easy access with 90 degree door opening. It comes in two versions with either a flat floor or an engine tunnel, visibility for the driver is excellent and of course, as it is a Volvo – safety is on a top level.

Chassis

Find specifications about chassis heights, max front axle load, rear suspension, coupling heights, tractors, chassis features and brakes.

Low

approx 880 mm

Med

approx 950 mm

High

approx 1050 mm





Air

Leaf

Low

7.1/7.5/8

9

Med

7.1/7.5/8

9

High

7.1/7.5/8

9



Type

Axels

Suspension

Axel/bogie load

Reduction

Pusher /Tag axels

Solo axle

RAD-L90

4x2

Parabolic/S-spring Parabolic

13 t

Single/hub



RAD-KR

4x2

Air

13 t

Single/hub





Bogie

RADT-KR6x2Air19/20 tSingle/hub

Tag axle (fixed/steered)

RADD-BR6x4Air23 tSingle/hub


Towbars for connecting trailers are avaialble.

Fuel tanks
Fuel tanks are available in plastic, steel or aluminium. Fuel volume varies from 160 to 630 litres. There are two heights of D-shaped tanks – 560 mm and 710 mm.

AdBlue tanks
Plastic, volume is 32 litres. The AdBlue pump is integrated with the AdBlue tank module.

EBS (Electronically-controlled Brake System) provides superior response, performance and brake feel, while providing access to a number of handy features. Upgrade your brake system by adding the EBS Medium package or any of the additional options. EBS is standard on all specifications.

EBS Medium

In addition to the EBS Standard package, EBS Medium adds the following features:



Hill Start Aid

The brakes are only released once there is sufficient engine torque to propel the vehicle forward.



ESC (Electronic Stability Control)

The brake stability system applies the brakes individually on each wheel, thereby providing stability for the entire vehicle combination and counteracting jack-knifing, rollover and trailer swing. ESC fulfils the legislation of Electronic Vehicle Stability Control, and is available for 2- and 3-axle vehicles.

Hydraulic retarder

Hydraulic retarder for AL306 gearbox. The compact, integrated hydraulic retarder is mounted on the gearbox and offers braking torque retardation of 1490 Nm.

Front axles
Front axle loads vary from 7.1 up to 9 tonnes.


Tag axles
Available in several configurations – fixed with single or dual wheels, or or actively steered. Axle load: 6.7, 7.1, 7.5 or 10.5 tonnes.

Frame Body Builder Hole Row

The upper hole row is reserved for the body builder. All brackets in the upper hole row have an offset and an 8 millimetre spacer. No rivets are used in the upper hole row.


Crane Preparation

Crane plates on the chassis can be factory- mounted.


Crane Preparation Kit

Crane plates on the chassis can be factory- mounted. The battery box is moved rearwards and the fixation plates are mounted behind the cab on each side of the chassis. An electrical preparation kit – ELCRANE – is included.

Fifth Wheels

An ISO fifth wheel with L-shaped profiles at different heights is included in the range, offering considerable freedom of choice. The flange-mounted fifth wheel is a low-weight variant since it does not require any attach- ment plate. The fifth wheel’s height above the chassis is from around 150 millimetres. Integrated lubrication and trailer connection indicator is available as option for specific variants.

Data sheets

Download specification data sheets in PDF format for the Volvo FE from the following links.
